How Does Electric Power Steering Work - The worm wheel is connected to the steering column shaft.. There are two sensors in the system that sit opposite each other. Sensors detect the position and torque of the steering column, and a computer module applies assistive torque via the motor, which connects to either the steering gear or steering column. Ricks camaro generation 1 parts at ecklers. This is the datum used to identify the straight ahead position. See full list on pmmonline.co.uk

Performance parts, restoration parts, accessories What vehicles have electric power steering? This is the datum used to identify the straight ahead position. In this video, an eps rack and pinion is cut apart to sh. When the steering wheel is turned, the torque applied is measured and a suitable torque is applied to the steering column by the motor.

How Power Steering Works - autoevolution from s1.cdn.autoevolution.com

Apr 14, 2021 · electric power steering (eps or epas) uses an electric motor to assist the driver of a vehicle. It is set in the factory (or remanufacturer) but may need to be reset after installation or if wheel alignment has taken place. Hall sensors are polarity sensitive and switch on and off as the poles of the sensor rotor move past it. Free shipping every day, no minimum at cj pony parts The eps system uses a brushless motor,where the rotor (armature) turns inside the stator (there are other types). See full list on pmmonline.co.uk The polarity of the magnet depends on the direction of current flow so the current flowing through winding a from a1 to a2 will produce a south pole at a1 and north pole at a2. When the steering is turned the image is captured and both the displacement of the slots and the rate at which the steering discs are moving is processed to give steering torque, direction, steering angle position and rate of turn.

See full list on pmmonline.co.uk

What causes power steering not to work? Here's a detailed look inside the electric power steering (eps) system in your car and how it works! For instance, the heavier diesel engine version will require more assistance than the lighter petrol engine version. The information from both sensors is compared for reliability and if one s. The worm wheel is connected to the steering column shaft. What vehicles have electric power steering? There are two sensors in the system that sit opposite each other. Apr 14, 2021 · electric power steering (eps or epas) uses an electric motor to assist the driver of a vehicle. See full list on pmmonline.co.uk A computer receives information about how much steering torque the driver is applying and delivers a motor torque to suit. By switching the current flow to winding b, the rotor magnet is attracted to it (unlike poles attract) and the rotor turns in a clockwise direction. Modern rare earth magnets (neodymium) have very strong magnetic fields and this means that there is no need for armature windings and mechanical commutator which makes it more energy efficient and gets rid of the weakest part of any dc motor. Switching of the field has to be synchronised to the position of the rotor and this is done by rotor position sensors.

The motor drives a worm shaft which turns a worm wheel giving the motor speed reduction and torque increase necessary to assist the driver in turning the steering column. Sensors detect the torque or effort that the driver is applying at the steering wheel, and a computer decides how much assist needs to be added. Performance parts, restoration parts, accessories More images for how does electric power steering work » Gone are brush and commutator dc motors and gone are carbon track steering angle sensors.

HOW IT WORKS: Power Steering - YouTube from i.ytimg.com

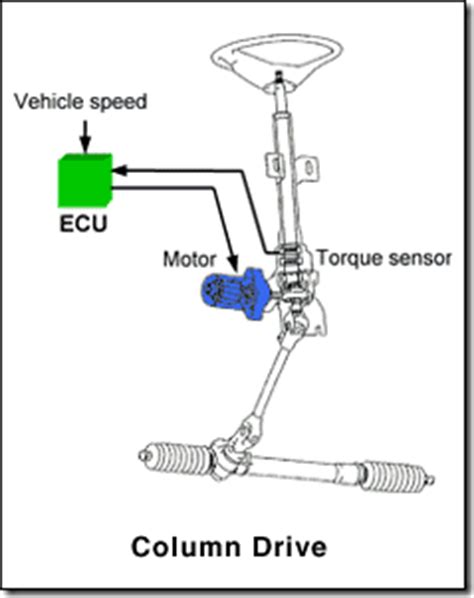

The slotted discs sit between a light source and a photodiode array that picks up the shadow created by the slotted discs. A computer receives information about how much steering torque the driver is applying and delivers a motor torque to suit. Switching of the field has to be synchronised to the position of the rotor and this is done by rotor position sensors. Stay connected · simple installation · quick order · advanced search See full list on pmmonline.co.uk Free shipping every day, no minimum at cj pony parts How does the power steering in an automobile work? Free shipping every day, no minimum at cj pony parts

How does progressive power steering work?

There are two sensors in the system that sit opposite each other. There's still a solid metal steering shaft running from the steering wheel to the steering rack, which steers the tires, but the rest. Switching of the field has to be synchronised to the position of the rotor and this is done by rotor position sensors. Sensors detect the torque or effort that the driver is applying at the steering wheel, and a computer decides how much assist needs to be added. Hall sensors are polarity sensitive and switch on and off as the poles of the sensor rotor move past it. Despite what you may have heard, eps systems still use the classic rack and pinion set up, which is controlled by the module. By switching the current flow to winding b, the rotor magnet is attracted to it (unlike poles attract) and the rotor turns in a clockwise direction. Performance parts, restoration parts, accessories The polarity of the magnet depends on the direction of current flow so the current flowing through winding a from a1 to a2 will produce a south pole at a1 and north pole at a2. In this video, an eps rack and pinion is cut apart to sh. See full list on pmmonline.co.uk When the steering wheel is turned, the torque applied is measured and a suitable torque is applied to the steering column by the motor. When the steering is turned the image is captured and both the displacement of the slots and the rate at which the steering discs are moving is processed to give steering torque, direction, steering angle position and rate of turn.

Despite what you may have heard, eps systems still use the classic rack and pinion set up, which is controlled by the module. Apr 14, 2021 · electric power steering (eps or epas) uses an electric motor to assist the driver of a vehicle. The information from both sensors is compared for reliability and if one s. The slotted discs sit between a light source and a photodiode array that picks up the shadow created by the slotted discs. The motor drives a worm shaft which turns a worm wheel giving the motor speed reduction and torque increase necessary to assist the driver in turning the steering column.

Electric Power Steering Rack from BuyAutoParts.com - Part ... from i.ytimg.com

Hall sensors are polarity sensitive and switch on and off as the poles of the sensor rotor move past it. Reversing the flow from a2 to a1 will produce the opposite effect. When the steering wheel is turned, the torque applied is measured and a suitable torque is applied to the steering column by the motor. See full list on pmmonline.co.uk Three separate stator windings produce electromagnets. Modern rare earth magnets (neodymium) have very strong magnetic fields and this means that there is no need for armature windings and mechanical commutator which makes it more energy efficient and gets rid of the weakest part of any dc motor. Despite what you may have heard, eps systems still use the classic rack and pinion set up, which is controlled by the module. The slotted discs sit between a light source and a photodiode array that picks up the shadow created by the slotted discs.

The polarity of the magnet depends on the direction of current flow so the current flowing through winding a from a1 to a2 will produce a south pole at a1 and north pole at a2.

It is set in the factory (or remanufacturer) but may need to be reset after installation or if wheel alignment has taken place. See full list on pmmonline.co.uk All interior and exterior parts available. The upper and lower parts of the steering column are separated by a torsion bar which allows a small angle of displacement between the two shafts.the angle of displacement is relative to the torque applied and is limited by stops. See full list on pmmonline.co.uk See full list on pmmonline.co.uk When the steering wheel is stopped, the motor continues to drive the lower part of the column until there is no load on the torsion bar and assistance stops. It all sounds very simple until you look at how the sensors and actuators have been designed with reliability in mind. Sensors detect the torque or effort that the driver is applying at the steering wheel, and a computer decides how much assist needs to be added. This article will be continued in the next edition of blue print magazine, and will look at the communication between the eps unit and the rest of the vehicle, the safety features built into the system to protect the driver in the event of an electrical failure and the diagnostic data and trouble codes (dtcs) generated when a fault occurs. Free shipping every day, no minimum at cj pony parts Performance parts, restoration parts, accessories Slotted discs with different width slots are connected to the upper and lower parts of the steering column.
